PRODUCT OVERVIEW
Application

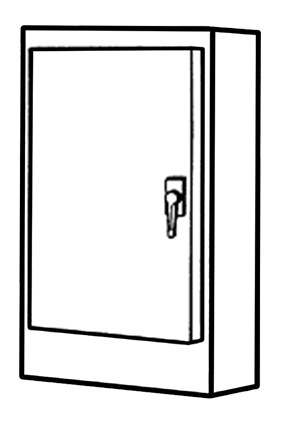

EPI NEMA Type 12 Single Door, Free-Standing Enclosures are designed to house electrical controls, terminals, and instruments. They provide protection from dust, oil, and water in indoor use. Enclosures are extra deep for applications where added interior space is needed.
Construction
Made from 14, 12, or 10-gauge steel. All seams are continuously welded. There are no holes or knockouts. The neoprene door gasket is attached with an oil-resistant adhesive. A T-handle mechanism is provided with key-locking or padlocking features. A 3-point latching device holds the door securely closed. Heavy gauge continuous stainless steel hinges support the door. Locking handles are optional.
Accessories
Panels must be ordered separately. Regular panels, side panels, and panel supports are available. Floor stand kits are available for factory installation on enclosures. Drip shield kits protect door and door hardware from dripping water and settling dust.
Finish
The standard finish is Sherwin Williams ANSI-70, light dove gray inside and out. Panels are the same.
Industry Standard
Meets National Electrical Manufacturers Association (NEMA) standard for Type 12 (Industrial Use) enclosures.
Standard Sizes
| Width | Height | Depth | Gauge |
|---|---|---|---|
| 24 | 60 | 18 | 12 |
| 24 | 72 | 18 | 12 |
| 30 | 72 | 18 | 12 |
| 36 | 72 | 18 | 12 |
| 24 | 90 | 20 | 12 |
| 36 | 90 | 20 | 12 |
| 24 | 72 | 24 | 12 |
| 30 | 72 | 24 | 12 |
| 36 | 60 | 24 | 12 |
| 36 | 72 | 24 | 12 |
| 36 | 90 | 24 | 12 |
| 24 | 72 | 30 | 12 |
| 36 | 72 | 30 | 12 |
| 24 | 72 | 36 | 12 |
| 36 | 72 | 36 | 12 |
| 36 | 90 | 36 | 12 |
