Application
EPI NEMA Type 3R Weatherproof Wireway is used to protect wiring in outdoor installations. Designed to protect the enclosed equipment against rain and sleet; may be used indoors where dripping water is a problem.
Construction

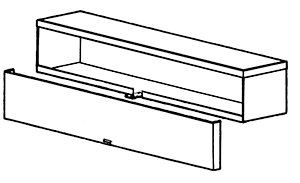

Made from 16 or 14-gauge steel. A drip shield top and smooth seam-free sides, front and back, prevent rain, snow, or sleet from entering the wireway. The slip-on removable cover is securely fastened with screws along the bottom edge(Covers not to exceed 72”). No gasket is provided. There are no holes or knockouts.
Finish
The standard finish is G90 galvanized steel. A Sherwin Williams ANSI-70 painted gray enamel finish inside and out is also available.
Industry Standard
Meets National Electrical Manufacturers Association (NEMA) standard for Type 3R (Rainproof and Sleet-Ice Resistant) enclosures.
Standard Sizes
| Width | Height | Depth | Gauge |
|---|---|---|---|
| 4 | 4 | 12 | 16 |
| 4 | 4 | 24 | 16 |
| 4 | 4 | 36 | 16 |
| 4 | 4 | 48 | 16 |
| 4 | 4 | 60 | 16 |
| 4 | 4 | 72 | 16 |
| 4 | 4 | 96 | 16 |
| 4 | 4 | 120 | 16 |
| 6 | 6 | 12 | 16 |
| 6 | 6 | 24 | 16 |
| 6 | 6 | 36 | 16 |
| 6 | 6 | 48 | 16 |
| 6 | 6 | 60 | 16 |
| 6 | 6 | 72 | 16 |
| 6 | 6 | 96 | 16 |
| 6 | 6 | 120 | 16 |
| 8 | 8 | 12 | 14 |
| 8 | 8 | 24 | 14 |
| 8 | 8 | 36 | 14 |
| 8 | 8 | 48 | 14 |
| 8 | 8 | 60 | 14 |
| 8 | 8 | 72 | 14 |
| 8 | 8 | 96 | 14 |
| 8 | 8 | 120 | 14 |
| 10 | 10 | 12 | 14 |
| 10 | 10 | 24 | 14 |
| 10 | 10 | 36 | 14 |
| 10 | 10 | 48 | 14 |
| 10 | 10 | 60 | 14 |
| 10 | 10 | 72 | 14 |
| 10 | 10 | 96 | 14 |
| 10 | 10 | 120 | 14 |
| 12 | 12 | 12 | 14 |
| 12 | 12 | 24 | 14 |
| 12 | 12 | 24 | 14 |
| 12 | 12 | 36 | 14 |
| 12 | 12 | 48 | 14 |
| 12 | 12 | 60 | 14 |
| 12 | 12 | 72 | 14 |
| 12 | 12 | 96 | 14 |
| 12 | 12 | 120 | 14 |
