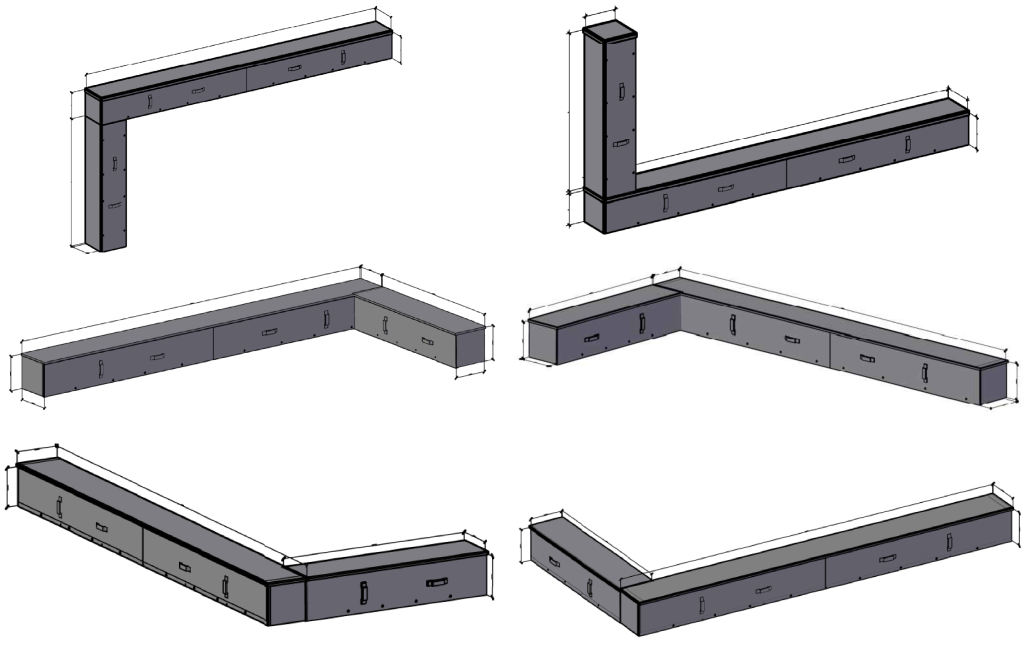

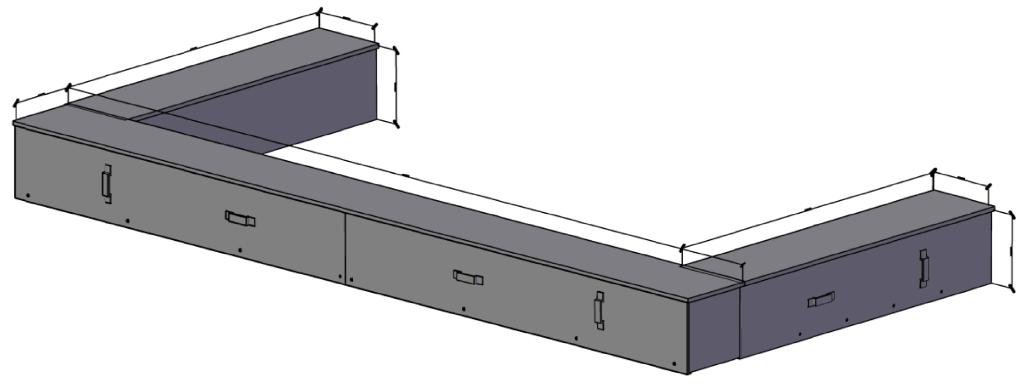

At EPI Enclosures & Engineering, we pride ourselves on 57 years of expertise in manufacturing high-quality NEMA enclosures, wireway, and bussed secondary products. Recognizing that our extensive range of custom NEMA 1 and NEMA 3R wireway shapes—C, Z, and L configurations—can sometimes lead to confusion regarding orientation and cover placement, our dedicated engineering team has developed isometric drawings to clarify these designs.

These detailed illustrations are available below, providing you with the clarity and precision needed for your projects. We invite you to use these resources and streamline your workflow with EPI’s tailored solutions. As always, our team is here to support you with any additional questions or custom requirements.

Get Started Today:

Download the PDF layouts below and mark them up with your specific dimensions and cover locations. Our isometric drawings are designed to be easily customizable to fit your project needs. If you have any questions or require further assistance, our expert team is here to help.
